Blister Packaging

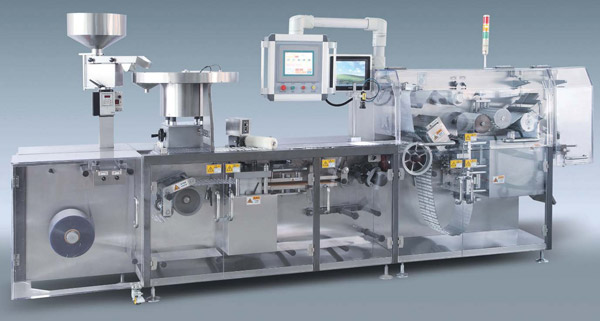

High speed Aluminium Plastic Blister Packing Machine

Features

The machine is improved based on Model DPH-220 with higher intelligent and stable working. The machine can make 180 cuttings/min by dislocation cutting style which makes the client can save at least 35,000USD every year on packaging materials.

• The 10.4 inches Human Machine Interface is equipped on a moveable hanging arm which allows the operator can do easier and simpler operating. HMI also allows the operator connects with USB, Printer, data reader etc.
• The machine comes with auto lubrication system on forming station and cutting station which avoiding operators do manual lubrication before every batch of production.
• The mechanical transmission parts are installed inside the machine which makes the machine more clean and better looking.
• The maximum PVC unwinding diameter is increased by this model. The machine has been also equipped a PVC quick connecting station which saves a lot of time on PVC change over and increases production efficiency.
• The machine comes with high speed vibrating feeding system, patent number: ZL 2013 2 0464944.5

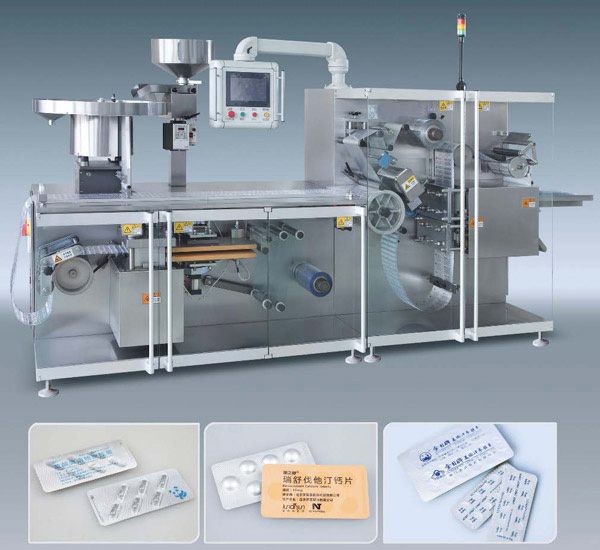

Printing Register System (Automatic Printing Registration)

Features

• The machine adopts servo system for printing Registration which makes the printing of aluminium foil perfectly match the blister strip with high speed running.
• It comes with automatic sensing function after aluminium foil changed over without manual adjustment.
• This system can perfectly wotk on both alu/alu and alu/pvc blister packing.
• Patent Number: ZL.2013 2 0436174.3

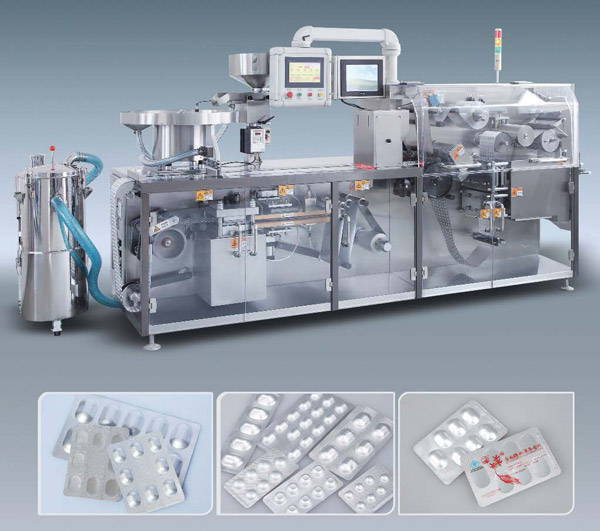

Dual-Function Machine (Alu/Alu and Alu/PVC)

Features

• The machine comes with two function which can make both alu/alu and alu/pvc by changing mould.
• Exchangging Alu/pvc and Alu Alu mould is simple and easy, just requires one set of mould. As Alu/Alu mould change over is as easy as Alu/PVC mould changing over which saves a lot of time and production spaces.
• During Alu/Alu Production, the machine comes with High speed Alu/Alu Vibrating Feeder.
• Printing Registration System for alu/alu packaging.
• Patent Number ZL.2013 2 0436174.3

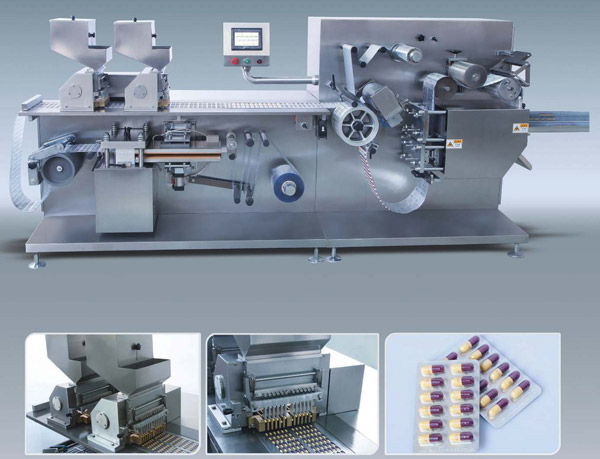

Capsule Positioning (The Capsule can be fed into blister in the same direction)

Features

• The feeder can make the capsules into blister pocket with same direction.
• The feeder makes the package more beautiful, higher level and customer preferable.
• It adopts two sets of feeders.
